PDF Configuration & Styling Guide

Besides generating an interactive documentation as an EHANDBOOK Container file, EHANDBOOK Container-Build can additionally generate a static documentation in the form of a single PDF file.

Content Configuration

The structure of the TOC and the amount of model hierarchies shown in the PDF can be configured in the eHandbookCB.ini, which is located in the installation directory of EHBCB.

For the ASCET Add-on for EHB-CB this is typically the ’tool’ sub directory of the ASCET installation. (e.g. C:\ETAS\ASCET6.1\Tools\EHANDBOOK_CB\tool).

Sample content of the eHandbookCB.ini:

Model Hierarchies printed

Sub Chapters in TOC

Logging Information

Title Page

The style and contents for the title page is taken directly from the corresponding configuration. It is valid for both EHANDBOOK Containers as well as PDF files. For details, please refer to the EHANDBOOK container style guide.

PDF Page Styling

The style of all pages besides the title page can be customized with an XML stylesheet. A file with the name PdfCustomization.xsl must be placed within the Styling folder.

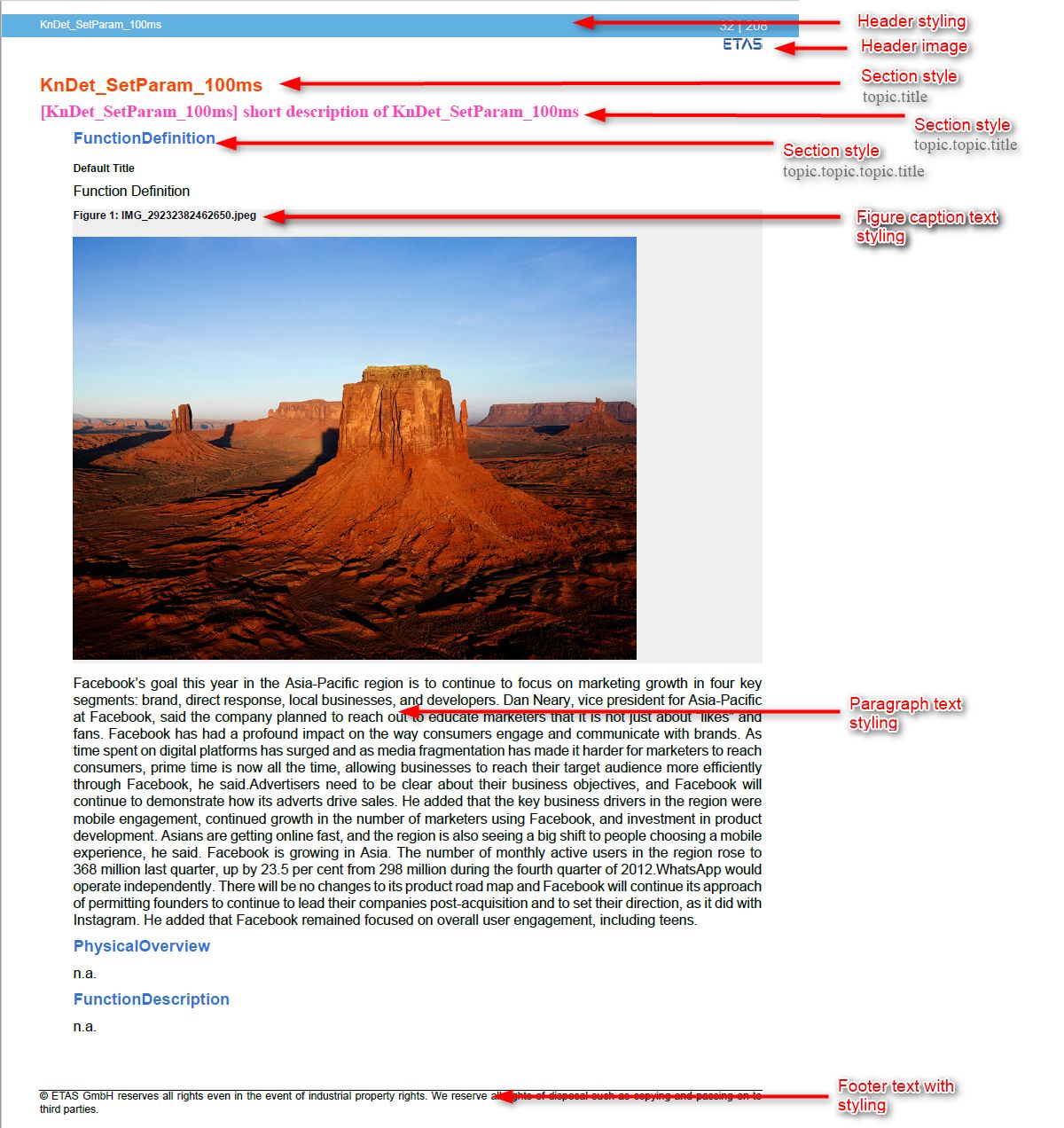

pdf styling overview

Fonts

The default font of the PDF documentation can be set with:

<xsl:attribute-set name="__fo__root">
    <xsl:attribute name="font-family">Arial, sansserif</xsl:attribute>
</xsl:attribute-set>

It is allowed to specify a list of fonts, which will be used. The order of the font, which will be picked from the list, is from left to right. If the font is not installed on your machine, the next font from the list will be selected.

A font list of Arial, Helvetica, sans-serif would select Arial, then Helvetica and then any other sans-serif font.

Page Header

The style of the header like font size, font family, color and more can be defined within the attribute-set "header_text".

Sample header text style:

<xsl:attribute-set name="header_text">
    <xsl:attribute name="font-size">9pt</xsl:attribute>
    <xsl:attribute name="color">black</xsl:attribute>
    <xsl:attribute name="font-family">sans-serif</xsl:attribute>
</xsl:attribute-set>

The header text alignment is set as:

<xsl:attribute-set name="header_align">
    <xsl:attribute name="text-align">left</xsl:attribute>
</xsl:attribute-set>

The header background color is set as:

<xsl:attribute-set name="odd__header">
    <xsl:attribute name="text-align">start</xsl:attribute>
    <xsl:attribute name="padding-left" select="$page-margins-leftright"/>
    <xsl:attribute name="line-height">6mm</xsl:attribute>
    <xsl:attribute name="end-indent">0pt</xsl:attribute>
    <xsl:attribute name="space-after.conditionality">retain</xsl:attribute>
    <xsl:attribute name="background-color">#00904C</xsl:attribute>
</xsl:attribute-set>

The contents for the page header such as header text and image are taken from the branding.properties file.

Page Footer

The style of the footer like font size, font family, color and more can be defined within the attribute-set "footer_text".

Sample footer text style:

<xsl:attribute-set name="footer_text">
    <xsl:attribute name="font-size">9pt</xsl:attribute>
    <xsl:attribute name="color">black</xsl:attribute>
    <xsl:attribute name="font-family">sans-serif</xsl:attribute>
</xsl:attribute-set>

The footer text alignment is set as:

<xsl:attribute-set name="footer_align">
    <xsl:attribute name="text-align">left</xsl:attribute>
</xsl:attribute-set>

The contents for the page footer such as footer text and image are taken from the branding.properties file.

Section and Subsection Headings

The style of the section’s title like font size, font family, color and more can be defined within the attribute-sets "topic.title", "topic.topic.title" and "topic.topic.topic.title".

Example for the section title text style:

<xsl:attribute-set name="topic.title">
    <xsl:attribute name="color">#FF4400</xsl:attribute>
    <xsl:attribute name="font-size">1.77em</xsl:attribute>
    <xsl:attribute name="font-family">Arial,sansserif</xsl:attribute>
</xsl:attribute-set>

Example for first level subsection style:

<xsl:attribute-set name="topic.topic.title">
    <xsl:attribute name="color">#FF4400</xsl:attribute>
    <xsl:attribute name="font-size">1.77em</xsl:attribute>
    <xsl:attribute name="font-family">Arial,sansserif</xsl:attribute>
</xsl:attribute-set>

Subsection styles can be provided within the following attribute sets:

  • topic.title (section title)

  • topic.topic.title (first level subsection)

  • topic.topic.topic.title (second level subsection)

Paragraph Texts

The style of the paragraph like font size, font family, color and more can be defined within the attribute-set p.

Sample paragraph style:

<xsl:attribute-set name="p">
    <xsl:attribute name="font-size">10pt</xsl:attribute>
    <xsl:attribute name="font-family">Times New Roman, serif</xsl:attribute>
</xsl:attribute-set>

Tables

The style of tables like font size, font family, color and more can be defined within the attribute-set table.data.

Sample table text style:

<xsl:attribute-set name="table.data">
    <xsl:attribute name="font-family">Times New Roman</xsl:attribute>
    <xsl:attribute name="font-size">10pt</xsl:attribute>
    <xsl:attribute name="color">blue</xsl:attribute>
</xsl:attribute-set>

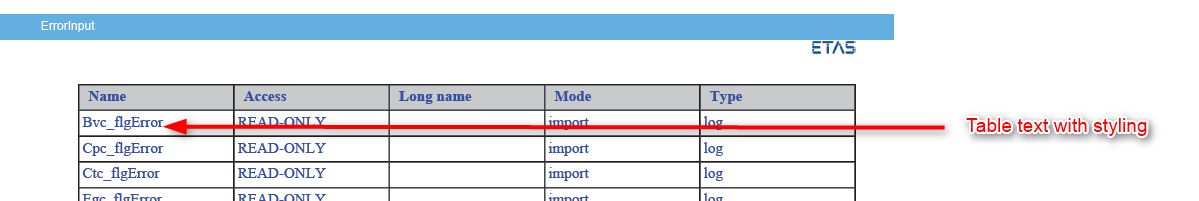

pdf styling table example

Figures

The Figure background color can be defined within the attribute-set fig.

Sample Figure style:

<xsl:attribute-set name="fig">
    <xsl:attribute name="background-color">white</xsl:attribute>
</xsl:attribute-set>

Limitations & Known Issues

If a chapter name exceeds the page width, then chapter name overlaps with page number and not shown completely in table of contents.
